Our Product Lines
High-quality cleanroom and air purification equipment β from HEPA filters to complete wall-panel systems
HEPA / ULPA High-Efficiency Air Filters
Medical-grade filtration from H13 to U17, capturing 99.99% of airborne particles down to 0.12 Β΅m.
Product Overview Our HEPA and ULPA filter range is the cornerstone of every cleanroom we build. Manufactured in our Wuxi facility with automated pleat-spacing technology, each filter undergoes individual scan testing to guarantee zero-leak performance before shipment. Key Specifications Efficiency grades: H13 (99.95%), H14 (99.995%), U15 (99.9995%), U16/U17 Media: Micro-fiberglass paper, PTFE membrane options Frame materials: Anodised aluminium, galvanised steel, stainless steel 304/316 Standard sizes: 610Γ610Γ150 mm, 1220Γ610Γ150 mm, custom dimensions available Sealant: Polyurethane, silicone, or gel-seal for zero-leak installation Operating temperature: Up to 120 Β°C (high-temp variants to 350 Β°C) Applications Pharmaceutical fill-finish lines, semiconductor lithography bays, hospital operating theatres, food and beverage aseptic packaging, and aerospace composite lay-up rooms. Certifications EN 1822 tested Β· ISO 29463 compliant Β· CE marked Β· Individual scan-test certificate included with every unit.
Air Shower & Personnel Airlocks
Stainless-steel air showers with 360Β° high-velocity nozzles removing >99.9% surface particles in 15 seconds.
Product Overview Our air shower tunnels create a critical barrier between uncontrolled areas and your cleanroom. Each unit features programmable PLC controls, automatic interlocking doors, and HEPA-filtered recirculating airflow at 25 m/s β ensuring personnel and materials enter your clean zone virtually particle-free. Key Specifications Air velocity: β₯25 m/s at nozzle, adjustable cycle 0β99 seconds Nozzle layout: 360Β° multi-directional stainless steel jets Materials: SUS 304 / SUS 316L stainless steel, powder-coated cold-rolled steel Door system: Electromagnetic interlock, automatic sliding or swing Filtration: Built-in H14 HEPA filters, pre-filter included Configurations: Single-person, double-person, cargo tunnel, L-shape, U-shape Intelligent Controls Touchscreen HMI with shower countdown, door status, filter differential-pressure alarm, and fault diagnostics. Optional integration with building management systems (BMS) via Modbus or BACnet.
Pass Boxes & Transfer Hatches
Mechanical and electronic interlocking transfer hatches that maintain pressure differentials during material transfer.
Product Overview Pass boxes (transfer hatches) allow materials to move between cleanroom zones of different classifications without compromising the pressure cascade. Hurricane Techs offers static, dynamic (HEPA-filtered), and air-shower pass boxes to meet every GMP workflow requirement. Product Range Static pass box: Mechanical or electronic interlock, UV option Dynamic pass box: Built-in H14 HEPA fan-filter, laminar flow purge cycle Air-shower pass box: High-velocity purge for high-particulate materials Roller-conveyor pass box: For heavy or high-volume material transfer Key Specifications Materials: SUS 304 / SUS 316L interior, powder-coated exterior optional Interlock: Mechanical gravity-type or PLC-controlled electronic Interior lighting: LED with UV option (254 nm germicidal) Sizes: Standard 600Γ600Γ600 mm, custom sizes up to 1500 mm GMP Compliance All pass boxes designed in accordance with EU GMP Annex 1 transfer requirements and FDA guidance for aseptic processing.
Laminar Flow Hoods & Clean Benches
Class 100 / ISO 5 vertical and horizontal laminar flow workstations for aseptic operations.
Product Overview Hurricane Techs laminar flow hoods provide a localised ISO 5 clean-air environment within a larger cleanroom or laboratory. Available in vertical and horizontal airflow configurations, these benches are indispensable for aseptic compounding, cell culture work, and sensitive electronics assembly. Key Specifications Cleanliness class: ISO 5 (Class 100) at operational state Airflow pattern: Vertical downflow or horizontal crossflow Filter: H14 HEPA, optional ULPA upgrade Work surface: SUS 304 stainless steel, perforated return-air grille Lighting: β₯300 lux LED, anti-glare diffuser Noise level: β€62 dB(A) Sizes: 2 ft, 3 ft, 4 ft, 5 ft, 6 ft widths Optional Features UV germicidal lamp, built-in ioniser, differential pressure gauge, remote alarm relay, and casters with levelling feet for mobile deployment.

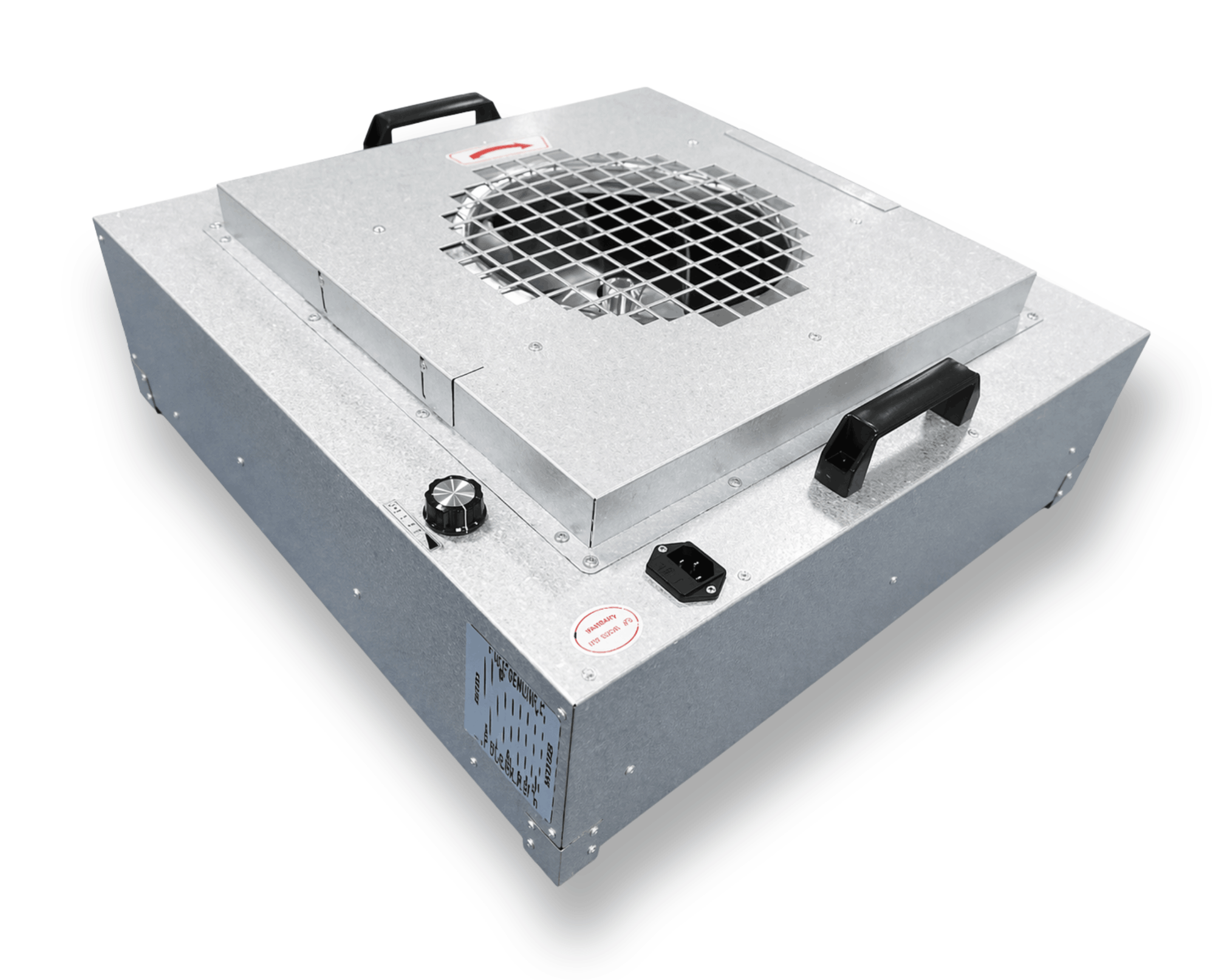

FFU Fan Filter Units
Self-contained EC-motor fan-filter units providing modular, energy-efficient HEPA/ULPA coverage for any ceiling grid.
Product Overview Our FFU range enables flexible cleanroom ceiling design: each unit combines a high-efficiency EC motor, pre-filter, and HEPA/ULPA filter in a slim housing that drops into standard T-grid ceilings. Group control via RS-485 or 0β10V signal allows zone-based airflow management and significant energy savings. Key Specifications Motor type: Brushless EC (electronically commutated), maintenance-free Speed control: Stepless 20%β100%, 0β10V or RS-485 interface Filter options: H13 HEPA, H14 HEPA, U15 ULPA Airflow rate: 600β1200 mΒ³/h per unit (size-dependent) Power consumption: 90β180 W per unit at rated speed Noise level: β€50 dB(A) at rated speed Housing: Galvanised steel, SUS 304 stainless, or aluminium Standard sizes: 1175Γ575 mm (2'Γ4'), 575Γ575 mm (2'Γ2') Energy Savings Compared to traditional AC-motor FFUs, our EC-motor units reduce energy consumption by 40β60%, with a typical payback period of 18 months. Group control software included free of charge.

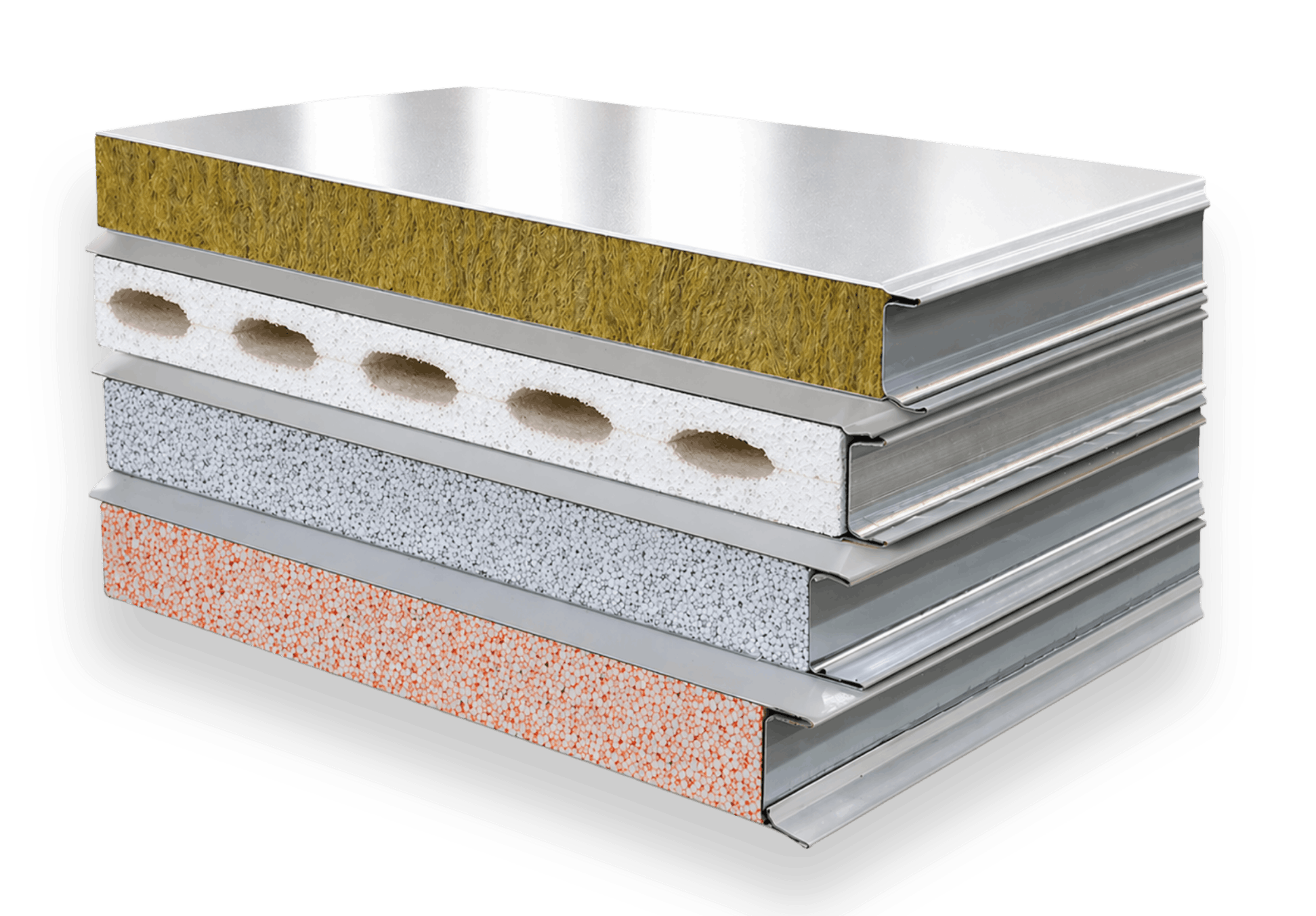

Cleanroom Sandwich Panels & Partition Systems
Flush-joint hand-made and machine-made sandwich panels with rock wool, PIR, or EPS cores for seamless cleanroom enclosures.
Product Overview Hurricane Techs manufactures both hand-made and machine-made sandwich panels that form the walls, ceilings, and partitions of cleanroom enclosures. Our panels feature hidden fastener systems and radius coving for smooth, crevice-free surfaces that are easy to clean and meet stringent GMP requirements. Panel Types Hand-made panels: 50/75/100 mm thickness, rock wool or PIR core, Class A fire rating Machine-made panels: High-volume production, EPS or rock wool core, tongue-and-groove joints Honeycomb panels: Lightweight aluminium honeycomb core for clean applications Key Specifications Facing material: 0.4β0.8 mm colour-coated galvanised steel, stainless steel, or HPL Core insulation: Rock wool (Class A1), PIR (Class B1), EPS, or aluminium honeycomb Surface finish: PE, PVDF, or anti-bacterial coating; smooth or peel-textured Joint system: Cam-lock, tongue-and-groove, or concealed screw Accessories: Radius cove mouldings, door frames, viewing windows, cable trunking Fire & Hygiene Standards Rock wool core panels achieve Class A1 (non-combustible) per EN 13501-1. Anti-bacterial coatings available for pharmaceutical and food-processing environments.
Need a Custom Solution?
We manufacture to your exact specifications β from single filters to complete turnkey cleanroom equipment packages.
Request a Quote
